Slotting & Shaping Machine

Slotting and shaping machines

Bench and heavy slotters for internal keyways, splines and square holes, and shaping machines from 12 to 42 inch ram stroke for flat surfaces, slots and angles. Single point tooling, cheap to run and easy to regrind in your own shop.

Request a Quote WhatsApp Us

To 300 mmBench slotter stroke

8–20″Heavy slotter stroke

12–42″Shaper ram stroke

4thGeneration, since 1950

The machine

Machine photographs

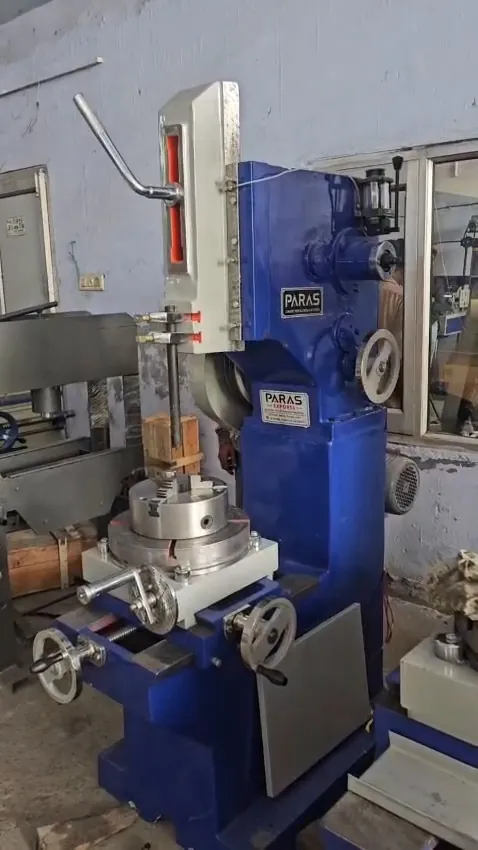

Machine manufactured by Paras Exports, Batala

More views

Close-ups of the headstock, gearbox, tooling and controls are available on request, with a short video of the machine running.

Ask for more photos

Slotting

Bench type slotting machine

For keyways in pulleys, sprockets, gears and couplings. Three speed adjustment and a compact footprint that fits an existing bench.

TMT series bench slotter

TMT-6 · TMT-10 · TMT-12

Model	TMT-6	TMT-10	TMT-12
Stroke	11–150 mm	10–250 mm	10–300 mm
Longitudinal movement	200 mm	230 mm	250 mm
Cross movement	110 mm	110 mm	110 mm
Speed adjustment	3 speed	3 speed	3 speed
Motor	1 HP	1–5 HP	2 HP

Slotting

Heavy type slotting machine

Seven strokes from 8 to 20 inches, taking work up to 48 inch diameter and 24 inch high. Built on a heavy base for continuous shop work.

Heavy duty slotting machine

8″ to 20″ stroke

Stroke	8″	10″	12″	14″	16″	18″	20″
Max diameter of work	28″	28″	34″	48″	48″	48″	48″
Max height of work	10″	10″	17″	18″	20″	22″	24″
Main motor	2 HP	2 HP	2 HP	3 HP	3 HP	5 HP	5 HP
Weight, approx.	700 kg	800 kg	1,300 kg	2 T	2.5 T	3 T	3.5 T

Shaping

Shaping machines, 12 to 42 inch

Six ram strokes for flat surfaces, slots, grooves, angles and dovetails. Single point tooling that any fitter can grind, which is what keeps running cost down.

PS series shaping machine

PS12 · PS18 · PS24 · PS30 · PS36 · PS42

Model	PS12	PS18	PS24	PS30	PS36	PS42
Ram stroke	12″ / 300 mm	18″ / 450 mm	24″ / 600 mm	30″ / 750 mm	36″ / 900 mm	42″ / 1000 mm
Table size	305 × 228 mm	457 × 305 mm	610 × 370 mm	762 × 390 mm	915 × 457 mm	1078 × 533 mm
Horizontal table travel	330 mm	488 mm	635 mm	787 mm	940 mm	1075 mm
Motor	1 HP / 1440	2 HP / 1440	3 HP / 1440	3 HP / 960	5 HP / 960	7.5 HP / 960

What they do

Typical work

Seen before it ships

You are welcome at Batala to see your machine running before dispatch, with a written inspection and dispatch certificate.

Delivered across India

We arrange transport from Batala to your site, so you are not chasing a transporter yourself.

One year warranty

Covered against technical fault for a full year from delivery, on every machine we supply.

Support that answers

Most questions are settled the same day over a video call with someone who knows the machine.

Freight and site visits are charged at actual. Installation is not included in the machine price and can be arranged on request.

Before you enquire

Slotting and shaping questions

What is a slotting machine used for?

Cutting internal keyways, splines, square and hexagonal holes, and internal grooves — work a lathe or milling machine cannot reach inside a bore. Any workshop making pulleys, gears, sprockets or couplings needs one, because the keyway is what stops the part spinning on the shaft.

Bench type or heavy type?

Bench slotters up to 300 mm stroke handle keyways in pulleys, sprockets and small couplings, and sit on a bench in a corner. Heavy slotters from 8 to 20 inch stroke take work up to 48 inch diameter and 24 inch high, and need a foundation. Work from the largest component you cut, not the average.

Shaper or milling machine?

A shaper cuts flat surfaces, slots, grooves and angles with a single point tool that costs a fraction of a milling cutter. It is slower, but tooling is cheap and easily reground in the shop, which is why shapers remain in Indian tool rooms long after the West retired them.

What size shaper do I need?

Ram stroke sets the longest cut you can take in one pass. A PS12 takes 300 mm, a PS42 takes 1000 mm. Match it to the longest surface you machine and check the table size takes the work.

Can you build a different size?

Yes. Both ranges are built to order in non-standard strokes and table sizes. Send the largest job you machine and we will confirm the configuration.
