Custom-Built Machines
Custom-built and special purpose machines
Machines built outside the standard range — to a drawing, to a tender specification, or to fit a job nothing on the catalogue quite covers. Plus CNC trainer machines for institutes and mini lathes for bench work.
The machine
Machine photographs
Special purpose
Built to your requirement
Most of what leaves the works to order began as a customer describing a problem rather than choosing a model number.
Modified bed lengths and bores
Lathes built outside the catalogue — longer beds, wider beds, larger bores or higher centre heights, on the same castings and the same build.
Machines built to a drawing
Send a general arrangement or a description of the operation and we quote against it. Most of what we build to order started as a customer's sketch.
Attachments and conversions
Taper turning, gap beds, extra steady rests, bore welding on a line borer, motorised feeds retrofitted to a manual machine.
Rebuilds and retrofits
An old machine with a sound bed is often worth rebuilding rather than replacing. Tell us what you have and what it needs to do.
How to start
Send whatever you have — a drawing, a photograph of the component, or a description of the operation. We confirm in writing what the machine will do before you commit to anything.
For institutes
CNC trainer lathe and CNC trainer milling machine
Working CNC machines sized for a classroom. Same ISO G-code as a production machine, with a real control on the front, so a student learns on the system they will meet in a job rather than a simulator.
Some figures for this machine are confirmed against the specific model at order stage and are not published here. Ask for the full specification sheet and we will send it the same day.
CNC trainer machines
Trainer lathe · trainer milling| Specification | CNC trainer lathe | CNC trainer milling |
|---|---|---|
| Purpose | Teaching turning and CNC programming | Teaching milling and CNC programming |
| Swing over bed / table size | 210 mm | 400 × 140 mm table |
| Distance between centres / travels | 400 mm | X 210 / Y 120 / Z 200 mm travels |
| Spindle bore / taper | 26 mm bore / MT4 taper | MT3 spindle taper |
| Spindle speed | 0–3,000 rpm, variable | 0–3,000 rpm, variable |
| Control and drives | ||
| Controlled axes | X and Z | X, Y and Z |
| Control system | Fanuc, Siemens or GSK, to your specification | Fanuc, Siemens or GSK, to your specification |
| Drives | Servo or stepper | Servo or stepper |
| Programming | ISO G-code, same as production machines | ISO G-code, same as production machines |
| General | ||
| Main motor | 1.2 kW | 1.5 kW |
| Supply | 220 V, single phase | 220 V, single phase |
| Machine weight | 310 kg with stand | 310 kg |
Real control, not a simulator
Fanuc, Siemens or GSK on the machine itself. A student who learns the control on a trainer walks into a production job already knowing it.
Quoted to tender
ITIs, polytechnics and colleges buy through tender or GeM. Send the specification sheet and we respond line by line.
Classroom sized
Single phase where possible, no foundation, and small enough that a workshop can hold several rather than one machine for thirty students.
Bench work

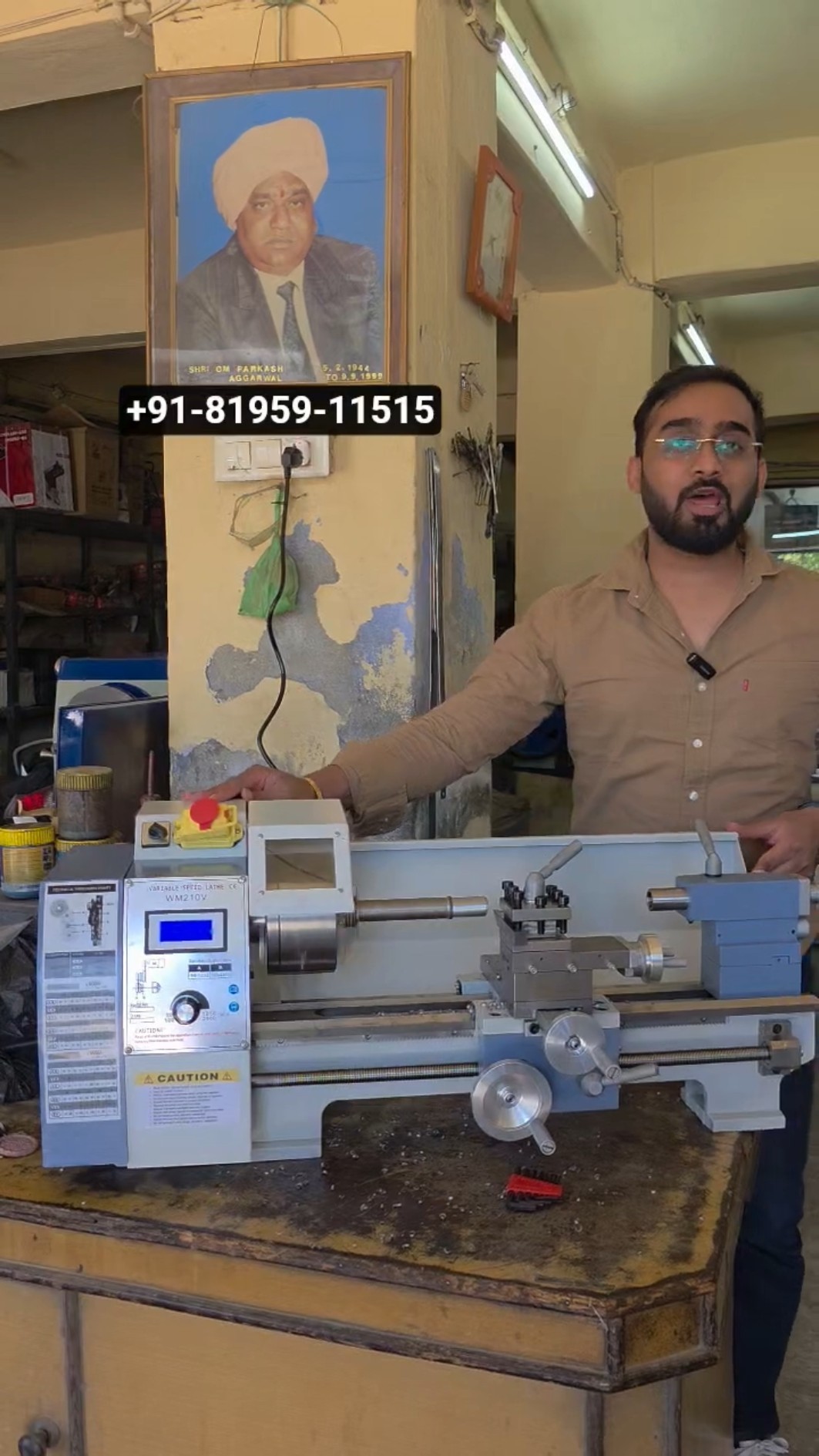

Mini lathe
A small lathe that does real turning and threading — for repair shops, model and instrument makers, training institutes and anyone whose work does not justify a full size machine or the floor it needs.
Mini lathe
Bench mounted · single phase| Specification | Mini lathe |
|---|---|
| Swing over bed | 210 mm |
| Distance between centres | 400 mm |
| Spindle bore | 21 mm |
| Spindle speed | Variable |
| Thread cutting | Metric and inch, change gears |
| Motor | 750 W |
| Supply | Single phase |
| Machine weight | 70 kg |
Runs on single phase
No three phase connection needed, so it works in a shop, a garage or a classroom without any electrical work.
Real threading
Change gears for metric and inch threads, so it cuts a proper thread rather than only turning down.
Sits on a bench
No foundation and no floor space of its own. For small components it does the work of a machine ten times the size.
Before you enquire
Custom and trainer machine questions
How does a custom order work?
What is a CNC trainer machine?
Do you supply against tenders and GeM?
Who buys a mini lathe?
Can you match a machine we already own?
Seen before it ships
You are welcome at Batala to see your machine running before dispatch, with a written inspection and dispatch certificate.
Delivered across India
We arrange transport from Batala to your site, so you are not chasing a transporter yourself.
One year warranty
Covered against technical fault for a full year from delivery, on every machine we supply.
Support that answers
Most questions are settled the same day over a video call with someone who knows the machine.
Freight and site visits are charged at actual. Installation is not included in the machine price and can be arranged on request.
Tell us the size. We’ll send the price today.
Message the bed length, swing and bore you need — or just describe the job. You’ll get specifications and a price the same working day.
Specifications are subject to change without notice as machines are continuously improved. Dimensions shown are nominal. Please confirm the final specification on your order acknowledgement.
