Bandsaw & Hacksaw

Band saw and power hacksaw machines

Horizontal band saws from 200 to 400 mm and power hacksaws from 200 to 600 mm round capacity. Band saws for speed and a square face, hacksaws for the lowest cost per cut on stock work.

Request a Quote WhatsApp Us

200–400 mmBand saw, round

200–600 mmHacksaw, round

7 sizesHacksaw range

M42Bi-metal blades

The machine

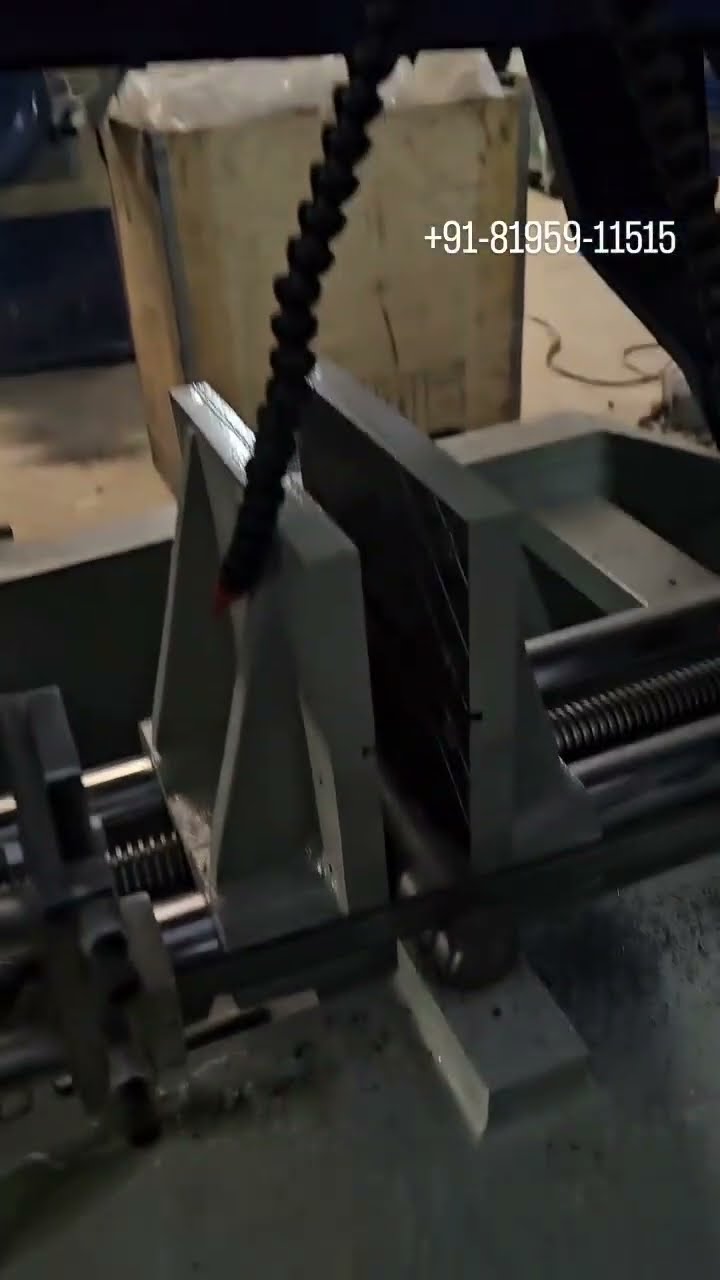

Machine photographs

More views

Close-ups of the working end, controls and tooling are available on request, with a short video of the machine running.

Ask for more photos

Start here

Find your capacity

Pick the largest round bar you cut. Band saws cover 200 to 400 mm, hacksaws go to 600 mm.

Band saws

Horizontal metal cutting band saws

Pivot type for general workshop use and double column for production. Hydraulic feed control, chrome plated blade guides, auto turn-off at the end of the cut and auto coolant.

Some figures for this machine are confirmed against the specific model at order stage and are not published here. Ask for the full specification sheet and we will send it the same day.

Horizontal band saw

200 · 250 · 300 · 400 mm

Model	200 mm	250 mm	300 mm	400 mm
Cutting capacity, round	200 mm	250 mm	300 mm	400 mm
Cutting capacity, square	150 × 150 mm	200 x 200 mm	250 × 350 mm	350 x 350 mm
Type	Pivot, manual	Pivot	Double column	Double column
Blade and drive
Blade size	3000 × 27 × 0.9 mm	3515 x 27 x 0.9 mm	3505 × 34 × 1.1 mm	4420 x 34 x 1.1 mm
Blade speed	20 / 35 / 55 / 75 m/min	22–37–55–75 m/min	22–37–55–75 m/min	22–37–55–75 m/min
Drive	Helical gear and pinion	Worm-gear reduction drive	Worm-gear reduction drive	Worm-gear reduction drive
Main motor	1 HP, 1440 rpm	1.5 HP / 1440 rpm	2 HP / 960 rpm	2 HP / 960 rpm
Coolant pump	0.15 HP	0.15 HP	0.15 HP / 2800 rpm	0.15 HP / 2800 rpm
General
Floor space	1700 × 600 × 900 mm	2.3 x 0.85 x 1.5 m	2.5 x 0.85 x 1.8 m	2.7 x 0.9 x 1.2 m
Machine weight	315 kg	400 kg	460 kg	750 kg

Supplied with: M42 HSS bi-metal blade, coolant pump, job stopper, swarf cleaning brush and tool kit. Material roller stand available separately.

Power hacksaws

Hydraulic power hacksaw machines

Seven sizes from 200 to 600 mm round capacity. Hydraulic down feed with automatic saw frame lift at the end of the cycle, rigid prismatic guides and a screw operated vice.

QMT series power hacksaw

QMT-8 to QMT-24

Model	QMT-8	QMT-10	QMT-12	QMT-14	QMT-16	QMT-20	QMT-24
Capacity, round bar	200 mm	250 mm	300 mm	350 mm	400 mm	500 mm	600 mm
Capacity, square bar	150 mm	200 mm	250 mm	275 mm	325 mm	350 mm	425 mm
Stroke	135 mm	140 mm	140 mm	140 mm	140 mm	150 mm	150 mm
Strokes per minute	100–120	85–100	85–100	85–100	70–85	70–85	70–85
Motor	1 HP / 1440 rpm	2 HP / 1440 rpm	2 HP / 1440 rpm	2 HP / 1440 rpm	3 HP / 1440 rpm	5 HP / 960 rpm	5 HP / 960 rpm

Fitted with: coolant pump, control switch, complete internal wiring and motor pulley. Blade sizes to suit each frame.

What they cut

Materials and sections

Seen before it ships

You are welcome at Batala to see your machine running before dispatch, with a written inspection and dispatch certificate.

Delivered across India

We arrange transport from Batala to your site, so you are not chasing a transporter yourself.

One year warranty

Covered against technical fault for a full year from delivery, on every machine we supply.

Support that answers

Most questions are settled the same day over a video call with someone who knows the machine.

Freight and site visits are charged at actual. Installation is not included in the machine price and can be arranged on request.

Before you enquire

Sawing machine questions

Band saw or power hacksaw?

A power hacksaw is cheaper to buy and cheaper to run, and blades cost a fraction of a band. It is slower and leaves a rougher face, but for a shop cutting stock to length it is hard to beat on cost. A band saw cuts faster, squarer and with far less waste, which pays back where you cut all day or where the cut face goes straight to machining.

What is kerf and why does it matter?

Kerf is the width of material the blade turns into swarf. A hacksaw blade is thick and wastes more on every cut. On expensive alloy or on high volume, that waste adds up faster than most workshops expect.

Bi-metal or carbon blade?

Bi-metal M42 blades cost more and last several times longer, especially on stainless and alloy steel. Carbon blades suit mild steel and occasional use. On a machine running daily, bi-metal is cheaper per cut.

Which size do I need?

Work from the largest round bar you cut. Hacksaws run 200 to 600 mm round, band saws 200 to 400 mm. Remember square capacity is always lower than round, so check both if you cut billet.

Pivot type or double column?

Pivot machines swing the head down through the cut and cost less, which suits general workshop use. Double column machines guide the head on both sides for a squarer cut on large sections, and are the choice for production.
