Lathe Machines

Lathe machine manufacturer & supplier, 4.5 to 30 feet

Heavy duty belt driven cone pulley lathe machines in nine standard sizes from 4.5 to 16 feet, with 18 to 30 feet and spindle bores to 26″ built to order. Manufactured in Batala, Punjab and delivered across India.

From₹1,60,000

Ex-works Batala, before GST and freight. Price depends on bed length, bed width, bore and accessories. Ask us for today’s best price — we quote against your actual requirement and there is usually room to work with on a firm order.

Request a Quote WhatsApp Us

4.5–30 ftBed lengths

Up to 26″Spindle bore

12–50″Bed width

4thGeneration, since 1950

The machine

Machine photographs

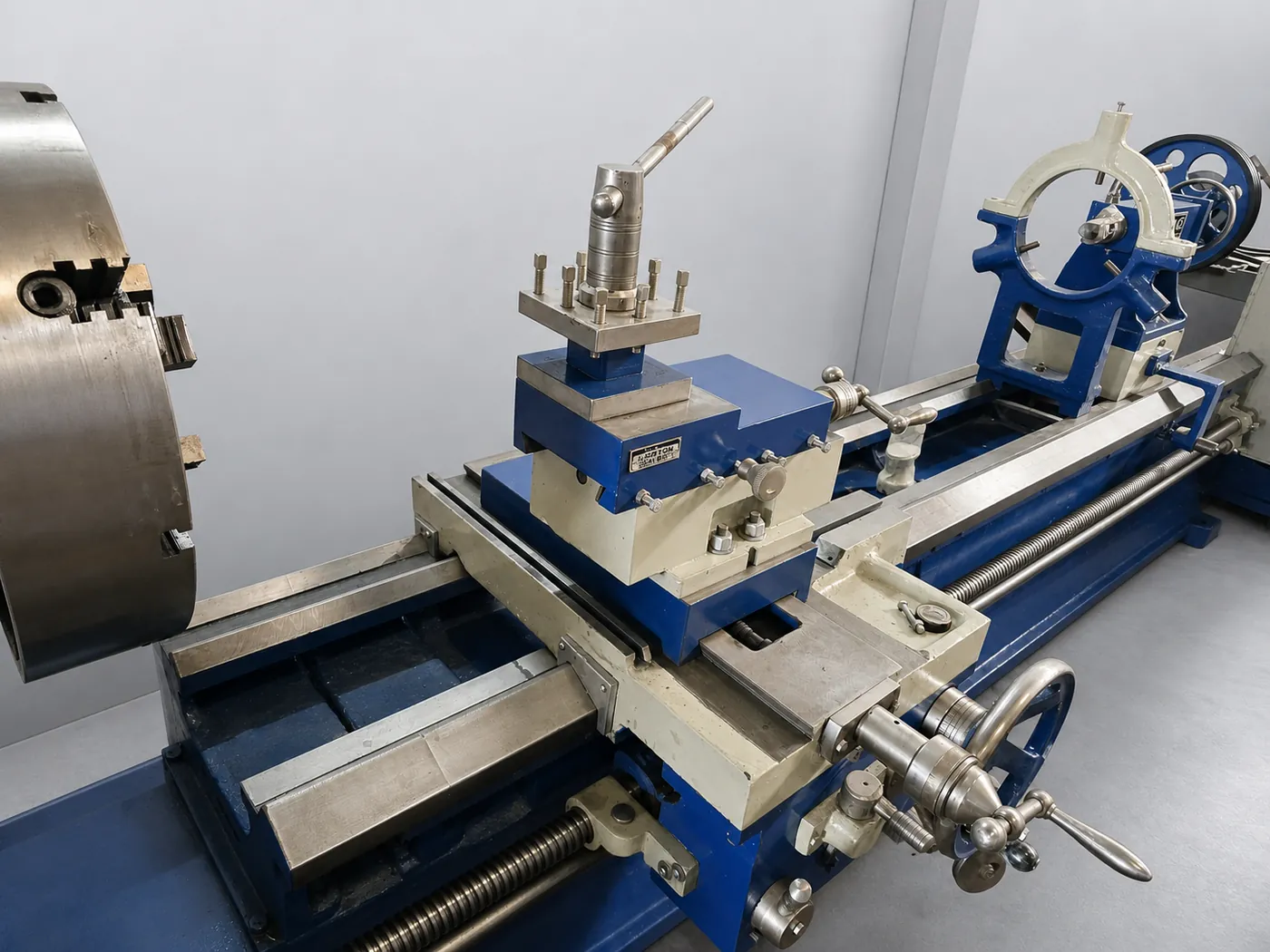

Machine manufactured by Paras Exports, Batala

More views

Close-ups of the headstock, gearbox, tooling and controls are available on request, with a short video of the machine running.

Ask for more photos

Video

This machine, working

Filmed at our works in Batala. Tap to play.

Find your size

Most buyers already know the bed length they need. Pick it and the range narrows to that size — or scroll the full range below.

4.5 Feet Lathe Machine

PAL412

The smallest machine in the range, and the one that fits where floor space is tight. A 20 inch swing and 2 inch bore suit light job work, small repair shops, ITI workshops and training rooms. Full Norton gearbox, so threading capability is the same as the larger machines — only the capacity is smaller.

Specification	PAL412
Width of bed	12" / 300 mm
Height of centre	10"
Swing over bed	20" / 500 mm
Spindle bore	2" / 50 mm
Main motor	2 HP
Net weight	460 kg
Gearbox	Full Norton

Supplied with: full Norton gearbox, chuck plate, set of 4 change gears, steady rest, follow rest assembly, dead centres.

6 Feet Lathe Machine

6 feet lathe machine price from ₹1,60,000 — full details →

PAL614

The size most Indian workshops buy first, and the one we sell more of than any other. A 24 inch swing over a 14 inch bed handles the majority of general turning, and the 3 to 7 inch bore range covers most pipe and bar work. If you are unsure between this and 8 feet, the deciding question is the longest shaft you expect to turn in the next five years, not the next five months. Available on bed widths from 14″ to 16″, with the standard specification below.

Specification	PAL614
Width of bed	14" / 350 mm
Height of centre	12"
Swing over bed	24" / 600 mm
Spindle bore	3–7"
Main motor	2 HP
Net weight	800 kg
Gearbox	Full Norton

Supplied with: full Norton gearbox, chuck plate, set of 4 change gears, steady rest, follow rest assembly, dead centres.

8 Feet Lathe Machine

8 feet lathe machine price from ₹2,10,000 — full details →

PAL816

Where 6 feet runs short. The step up brings a 28 inch swing, a 16 inch bed and bore to 10 inches, which is the point at which the machine stops being a general workshop lathe and starts handling production work. Still on a full Norton gearbox. Available on bed widths from 16″ to 24″, with the standard specification below.

Specification	PAL816
Width of bed	16" / 400 mm
Height of centre	14"
Swing over bed	28" / 700 mm
Spindle bore	3–10"
Main motor	3 HP
Net weight	1,300 kg
Gearbox	Full Norton

Supplied with: full Norton gearbox, chuck plate, set of 4 change gears, steady rest, follow rest assembly, dead centres.

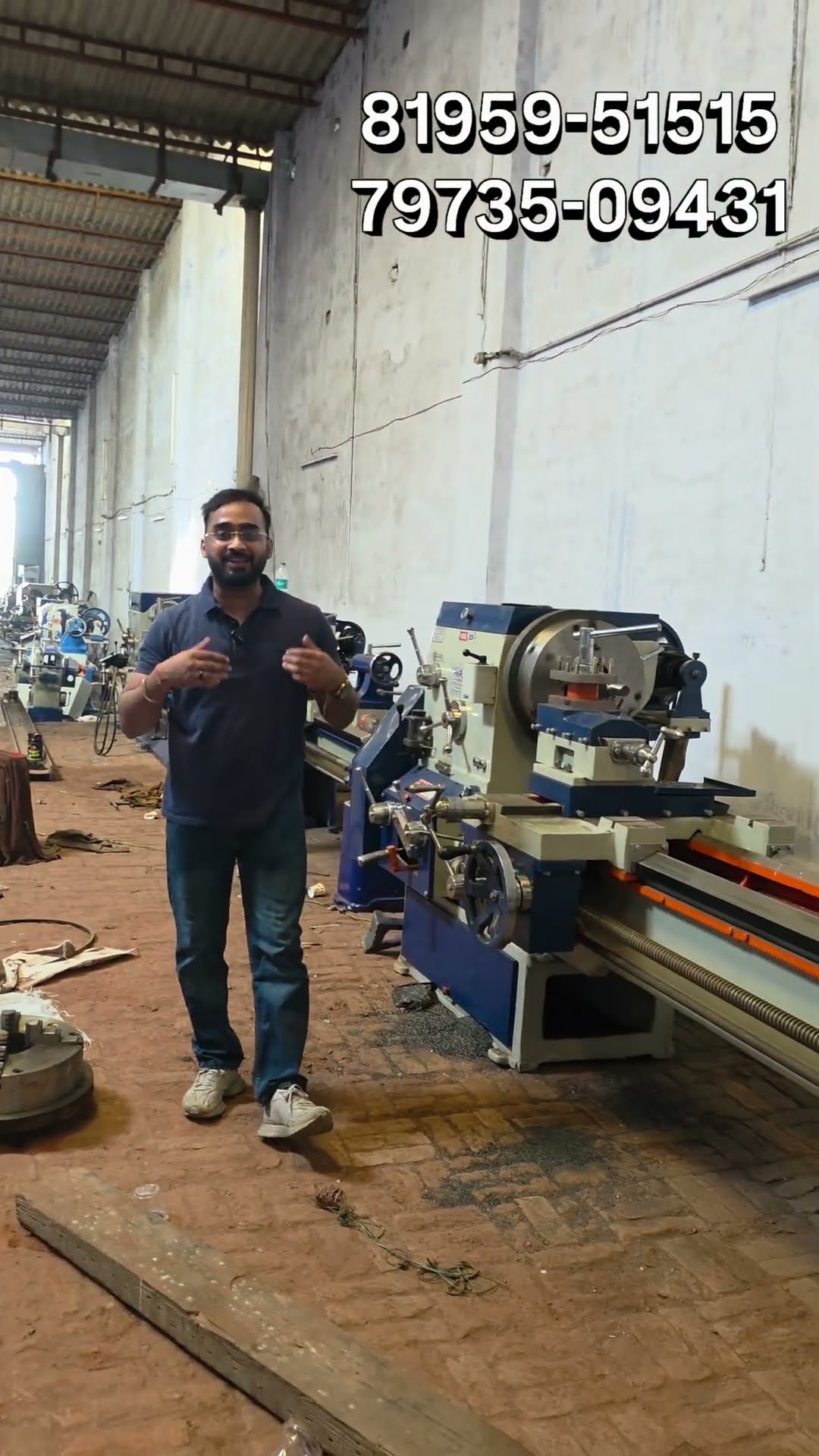

10 Feet Lathe Machine

10 feet lathe machine price from ₹2,70,000 — full details →

PAL1018

First of the heavy sizes. From here the range moves to a semi-Norton gearbox with the 23 change gear set, and the bed is built for continuous running rather than intermittent job work. A 32 inch swing over an 18 inch bed. Available on bed widths from 18″ to 24″, with the standard specification below.

Specification	PAL1018
Width of bed	18" / 450 mm
Height of centre	16"
Swing over bed	32" / 800 mm
Spindle bore	4–10"
Main motor	3 HP
Net weight	1,800 kg
Gearbox	Semi-Norton

Supplied with: semi-Norton gearbox, chuck plate, set of 23 change gears, steady rest, follow rest assembly, dead centres.

12 Feet Lathe Machine

12 feet lathe machine price from ₹3,80,000 — full details →

PAL1220

Long shafts, rollers, pipe and column work. A 36 inch swing takes most general heavy turning, and at 2,500 kg the machine has the mass to hold a cut without chatter on long components. Available on bed widths from 18″ to 32″, with the standard specification below.

Specification	PAL1220
Width of bed	20"
Height of centre	18"
Swing over bed	36" / 900 mm
Spindle bore	4–10"
Main motor	3 HP
Net weight	2,500 kg
Gearbox	Semi-Norton

Supplied with: semi-Norton gearbox, chuck plate, set of 23 change gears, steady rest, follow rest assembly, dead centres.

16 Feet Heavy Duty Lathe Machine

16 feet lathe machine price from ₹4,50,000 — full details →

PAL1622 · PAL1624 · PAL1626 · PAL1628

Four bed widths on the same 16 foot bed — 22, 24, 26 and 28 inches — so the machine is matched to the weight of the work rather than only its length. A heavier bed on the same length means a more rigid cut on large diameter components. This is the size range where steel plants, rolling mills and heavy fabrication shops usually start. Available on bed widths from 22″ to 40″, with the standard specification below.

Specification	PAL1622	PAL1624	PAL1626	PAL1628
Width of bed	22"	24"	26"	28"
Height of centre	20"	22"	24"	26"
Swing over bed	40"	44"	48"	52"
Spindle bore	5–6"	5–6"	5–6"	5–6"
Main motor	5 HP	5 HP	5 HP	5 HP
Net weight	3,800 kg	4,500 kg	5,000 kg	6,000 kg
Gearbox	Semi-Norton	Semi-Norton	Semi-Norton	Semi-Norton

Supplied with: semi-Norton gearbox, chuck plate, set of 23 change gears, steady rest, follow rest assembly, dead centres.

Extra Heavy Duty Lathe Machines — 18 to 30 Feet

Beyond 16 feet we build against the job rather than a catalogue number, because bed width, bore and centre height all move with the workpiece. These are the machines that go to rolling mills, sugar plants and heavy fabrication units. Tell us what you need to turn and we confirm the full specification in writing before quoting.

Bed lengths18 · 20 · 24 · 30 ft
Spindle boreto 26″
Bed widthto order
Swing over bedto order
Gap bedsingle / double / triple
GearboxNorton / semi-Norton
Drivecone pulley belt drive
Steady restssized to workpiece

Send your job details on WhatsApp

Any combination

Bed length and bed width are chosen separately

The sizes above are our standard models. Bed width is a separate choice, so a 12 foot machine can be built on anything from an 18 to a 32 inch bed. A wider bed on the same length gives a larger swing and a more rigid cut.

12″20″30″40″50″

4.5 ft

12″

6 ft

14–16″

8 ft

16–24″

10 ft

18–24″

12 ft

18–32″

16 ft

22–40″

18 ft

20–50″

20 ft

20–50″

24 ft

20–50″

30 ft

20–50″

Bed width is chosen separately from bed length. A wider bed on the same length gives a more rigid cut and a larger swing, so the machine is matched to the weight of the work rather than only its reach. Widths between the figures shown are built to order.

Swing by bed width

Any bed length

Bed width	Centre height	Swing over bed
12″	10″	20″
14″	12″	24″
16″	14″	28″
18″	16″	32″
20″	18″	36″
22″	20″	40″
24″	22″	44″
26″	24″	48″
28″	26″	52″
30″	28″	56″

Bed width	Centre height	Swing over bed
32″	30″	60″
34″	32″	64″
36″	34″	68″
38″	36″	72″
40″	38″	76″
42″	40″	80″
44″	42″	84″
46″	44″	88″
48″	46″	92″
50″	48″	96″

Height of centre runs two inches under the bed width, and swing over bed is twice the height of centre. Pick the width that suits the diameter you turn.

Also available

Other lathe types

All geared lathe machines

Nine spindle speeds by lever, 30 to 1060 RPM, induction hardened bed ways, bores to 104 mm. For production work where speed changes are frequent and the cut has to hold torque.

View specifications →

Roll turning lathe machines

Extended bed machines for sugar mill, steel mill, paper mill and rubber rolls. Built to your roll, confirmed in writing before quoting, inspected at our works before dispatch.

How we quote →

Included in the price

Standard accessories

Fitted and tested before dispatch rather than shipped loose:

Optional, at extra cost

Configure it

Built to your requirement

Almost every dimension is adjustable at the time of order:

Industries we supply

Before you enquire

Lathe machine buying questions

What is the price of a lathe machine?

Our belt drive cone pulley lathes start at ₹1,60,000 ex-works Batala for the 4.5 foot machine, before GST and freight. Price rises with bed length, swing and spindle bore — a 6 or 8 foot machine costs more than a 4.5, and a 16 or 20 foot machine considerably more. Accessories such as a bigger chuck, steady rest or Norton gearbox also change the figure. Send us the bed length and the largest job diameter you turn and you will have a firm price the same working day.

How much does a 6 feet lathe machine cost?

The 6 foot machine is the size most Indian workshops buy first. Price depends on the bed width, height of centre and spindle bore you choose, since the same 6 foot bed is built in several capacities. WhatsApp us on +91 81959 51515 with the job diameter and we will send the current 6 feet lathe machine price with full specifications.

What is the 8 feet lathe machine price?

The 8 foot lathe is our most exported size and is built in several bed widths and bores. Because the specification varies so widely at this size, we quote it against your requirement rather than publishing one figure. Tell us the swing and bore you need and we will send the 8 feet lathe machine price the same working day.

Do you make 10, 12, 16 and 20 feet lathe machines?

Yes. The standard range runs from 4.5 feet to 30 feet in nine bed lengths, and bed length and bed width are chosen separately, so a 12 foot machine can be built narrow or heavy depending on the work. The 16 and 20 foot machines are commonly used for roll turning, sugar mill and steel plant work. Anything beyond the standard range is built to order.

Is GST and delivery included in the lathe machine price?

No. Prices are ex-works Batala, before GST and freight. GST is charged at the applicable rate on the invoice, and transport is quoted separately to your city at actuals. We arrange the transport from our end. For export orders we quote FOB or CIF as you prefer.

What size lathe machine do I need?

Two numbers decide it. The longest job you will turn sets the bed length, and the largest diameter sets the swing. If you machine pipe or bar through the spindle, the bore matters as much as either. Send us those three figures and we will tell you the right model.

Belt drive or all geared — which is better?

Cone pulley belt drive is simpler, cheaper to buy, cheaper to repair and easier to get parts for anywhere in India, which is why it remains the standard workshop machine. All geared makes sense where speed changes are constant, or on heavy jobs where a belt would slip under torque. We supply both, so we have no reason to push you either way.

Is a Norton gearbox the same as all geared?

No, and it is a common mix-up. The Norton or semi-Norton gearbox is the quick-change box for threading pitches and feed rates. Whether the spindle is belt driven or geared is a separate matter. Our cone pulley machines are belt driven for spindle speed and carry a Norton box for threading.

What is swing over gap?

Swing over bed is the largest diameter that clears the bed ways along the full length. Swing in gap is the larger diameter you can turn immediately in front of the face plate once the gap piece is removed — useful for short, large diameter work like flanges and pulleys.

What is the price of a lathe machine?

Price depends on bed length, bed width, spindle bore and the accessories fitted. A 6 feet machine and a 16 feet machine are different products at different prices. Message the size you need on WhatsApp and you will have a figure the same working day.

Do you arrange transport?

Yes. We arrange transport from Batala to your site anywhere in India, and freight is charged to you at actual. You are welcome to arrange your own transporter instead if you prefer.

Do you install the machine?

Installation is not included in the machine price. Most workshops set these machines up themselves, as the levelling and foundation requirement is straightforward. If you want our man at site, that can be arranged at extra cost — tell us at the time of order.

What warranty do you give?

One year against any technical fault. Day to day support is over video call, which resolves most queries the same day. Where a site visit is needed, that is arranged at extra cost.

Tell us the size. We’ll send the price today.

Message the bed length, swing and bore you need — or just describe the job. You’ll get specifications and a price the same working day.

WhatsApp +91 81959 51515 Call now Email us

Specifications are subject to change without notice as machines are continuously improved. Dimensions shown are nominal. Please confirm the final specification on your order acknowledgement.
