Hose Crimping Machine
Hose crimping and skiving machines, 6 to 102 mm
Everything for making hydraulic hose assemblies — crimpers from quarter inch to four inch with the full die set included, and hand or motorised skiving machines to prepare the hose end.
The machine

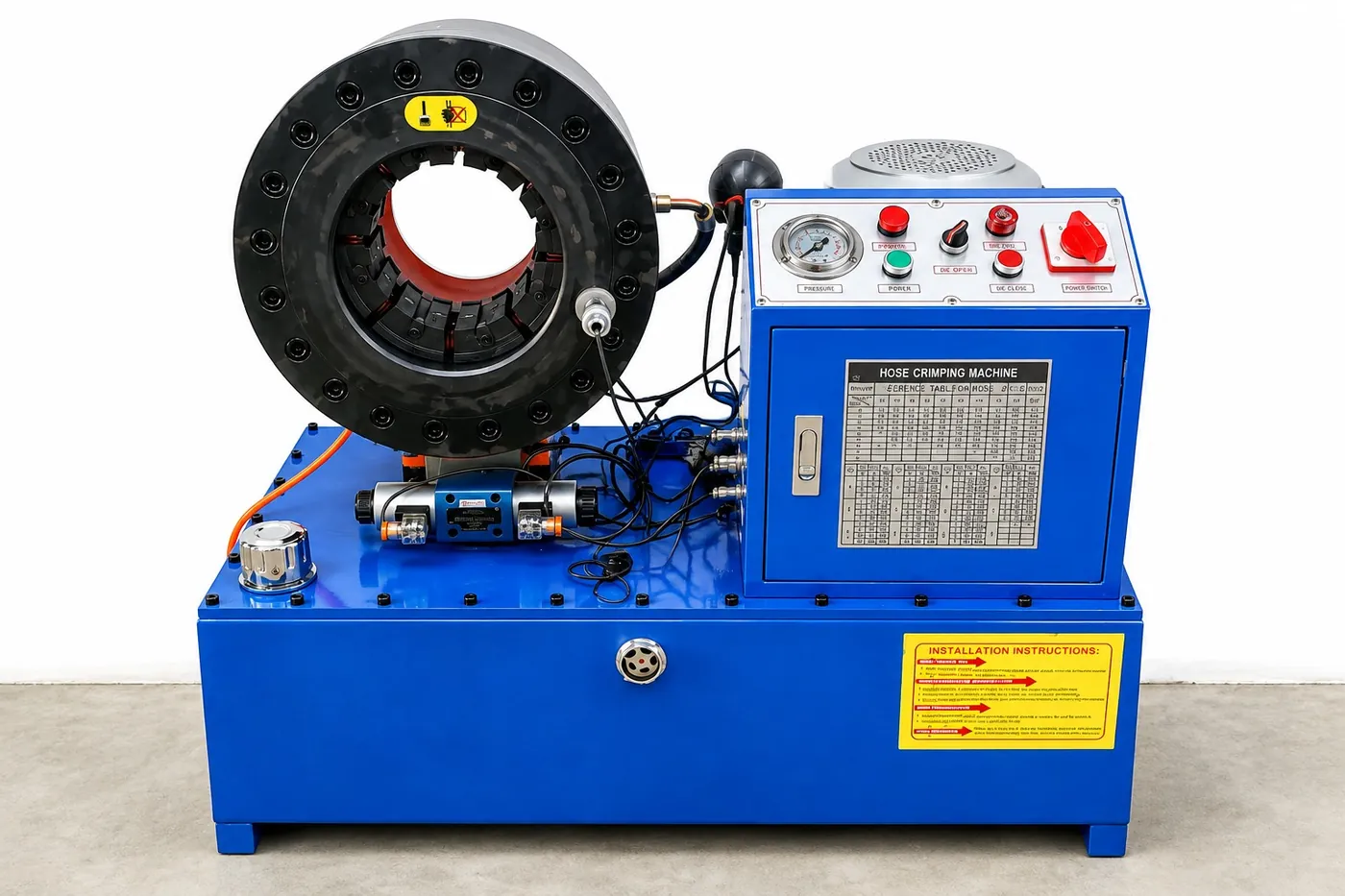

Machine photographs
The range
Three models
The PAHC52 covers quarter inch to two inch on two wire hose, which is what a general workshop handles day to day. The PAHC53 is the same range with more force for four wire. The PAHC54 goes to four inch and takes 4SP and 6SP, for heavy equipment and industrial assemblies.
PAHC series hose crimping machine
PAHC52 · PAHC53 · PAHC54| Model | PAHC52 | PAHC53 | PAHC54 |
|---|---|---|---|
| Crimping range | 6–51 mm (1/4″–2″) | 6–51 mm (1/4″–2″) | 6–102 mm (1/4″–4″) |
| Hose type | up to 2 wire | up to 4 wire | 4″ 4SP, 3″ 6SP |
| Crimping force | 560 T | 600 T | 2100 T |
| System pressure | 31.5 MPa | 31.5 MPa | 31.5 MPa |
| Motor and supply | |||
| Motor power | 3 kW / 4 HP | 4 HP | 4 – 5.5 kW |
| Voltage | 230 V, single phase | 220 / 440 V | 220 / 380 V |
| Capacity | |||
| Max opening diameter | 114 mm | 114 mm | 185 mm |
| Max open tolerance | — | — | ± 30 mm |
| Scale accuracy | 0.01 mm | 0.01 mm | 0.01 mm |
| Die sets included | 12 sets | 10 sets (included) | 15 sets |
| Oil pump / tank | — | — | 10 L / 220 L |
| Operating | automatic, foot pedal or manual | automatic, foot pedal or manual | automatic |
| Packing | |||
| Package size | 89 × 65 × 81 cm | 89 × 65 × 81 cm | 106 × 89 × 120 cm |
| Gross weight | 320 kg | 320 kg | 580 kg |
PAHC52 dies, 12 sets included
- 8 mm
- 12 mm
- 15 mm
- 19 mm
- 23 mm
- 26 mm
- 31 mm
- 36 mm
- 41 mm
- 47 mm
- 55 mm
- 63 mm
PAHC54 dies, 15 sets included
- 15, 19, 23, 26 — 60 mm long
- 31, 36, 41 — 70 mm long
- 47, 55, 63 — 80 mm long
- 75, 84, 105, 115, 130 — 100 mm long
Hose preparation
Hose skiving machines
A crimper is only half the job. Skive-type ferrules need the cover stripped back before crimping, and doing it by knife is slow and inconsistent. Two machines — a hand skiver for the bench or the van, and a motorised one for continuous work.
PASK series hose skiving machine
Manual · automatic · internal and external| Model | PASK-M manual | PASK-A automatic |
|---|---|---|
| Operation | Hand operated, vice mounted | Motor driven, foot pedal |
| Skiving range | 1/4″ – 2″ | 1/4″ – 2″ |
| Internal skiving | Yes, with mandrel | Yes |
| External skiving | Yes | Yes |
| Hose types | fabric braid, wire braid, multi-spiral | fabric braid, wire braid, multi-spiral to 4 layer |
| Motor | — | 1.5 kW |
| Voltage | — | 220 / 380 V |
| Dust collection | — | Shavings tray |
| Mandrel sets | External set supplied, internal optional | Mandrel set supplied |
| Weight | Bench tool | 80 kg |
Why hose has to be skived
A crimped fitting has to grip the steel wire reinforcement, not the rubber cover. On skive-type ferrules the cover has to come off first, or the rubber sits between the ferrule and the wire and the joint lets go under pressure.
Internal and external
External skiving takes the outer cover off so the ferrule bites the wire. Internal skiving removes inner rubber where the fitting stem goes in, on the larger and multi-spiral hoses. Both machines do both.
Manual or motorised
The hand skiver mounts in a vice, costs little and suits occasional work or a service van. The motorised machine with foot pedal frees both hands to guide the hose, and is the one to take if you are making assemblies all day.
Where they work
Who buys them
Anywhere hydraulic hose fails and downtime costs more than the hose. A crimper turns a two day wait into a twenty minute repair.
- Hydraulic hose assembly
- Excavator and JCB hose repair
- Tractor and farm equipment
- Truck and trailer workshops
- Industrial maintenance
- Hose trading and distribution
- Mining and drilling equipment
Repair in minutes
Cut, fit and crimp on the bench. A machine down for a burst hose is running again the same shift.
One machine, full range
Quarter inch to two inch on the same crimper, so one purchase covers almost everything a workshop sees.
Sell assemblies, not parts
Hose and fittings bought in, finished assemblies sold out. For a hose trader that is where the margin is.
Dies to your sizes
Standard set supplied, extra dies made to the sizes you actually work with.
Delivered across India
We arrange transport from Batala to your site, so you are not chasing a transporter yourself.
One year warranty
Covered against technical fault for a full year from delivery, on every machine we supply.
Support that answers
Most questions are settled the same day over a video call with someone who knows the machine.
Freight and site visits are charged at actual. Hose and fittings are not supplied with the machine.
Before you enquire
Hose crimping questions
What hose sizes can it crimp?
Do dies come with the machine?
Which of the three models do I need?
Can I use it for hose trading rather than my own repairs?
Do I need a skiving machine as well as a crimper?
What supply does it need?
Tell us the size. We’ll send the price today.
Message the bed length, swing and bore you need — or just describe the job. You’ll get specifications and a price the same working day.
Specifications are subject to change without notice as machines are continuously improved. Dimensions shown are nominal. Please confirm the final specification on your order acknowledgement.
