Iron Cutting
Ironworker and iron cutting machines, 36 to 120 tonne
One frame carrying five stations — punching, flat bar shearing, angle cutting, round and square bar cutting, and notching. Three ironworker sizes plus a dedicated 120 tonne iron cutter, covering light grill work through to heavy structural sections.
The machine
Machine photographs
The range
Three capacities
Size is set by the thickest section you cut and the largest hole you punch, not by the lightest.
Some figures for this machine are confirmed against the specific model at order stage and are not published here. Ask for the full specification sheet and we will send it the same day.
QA34 series ironworker
QA34-08B · QA34-10B · QA34-12B| Model | QA34-08B | QA34-10B | QA34-12B |
|---|---|---|---|
| Max punching force | 360 kN / 36 T | 500 kN / 50 T | 900 kN / 90 T |
| Cutting frequency | 30 / min | 30 / min | 30 / min |
| Motor power | 2.2 kW | 3 kW | 4 kW |
| Supply | 415 V | 415 V | 415 V |
| Overall size | 900 × 500 × 1100 mm | 1000 × 600 × 1200 mm | 1200 × 800 × 1600 mm |
| Weight | 500 kg | 700 kg | 1,000 kg |
Heavy shearing

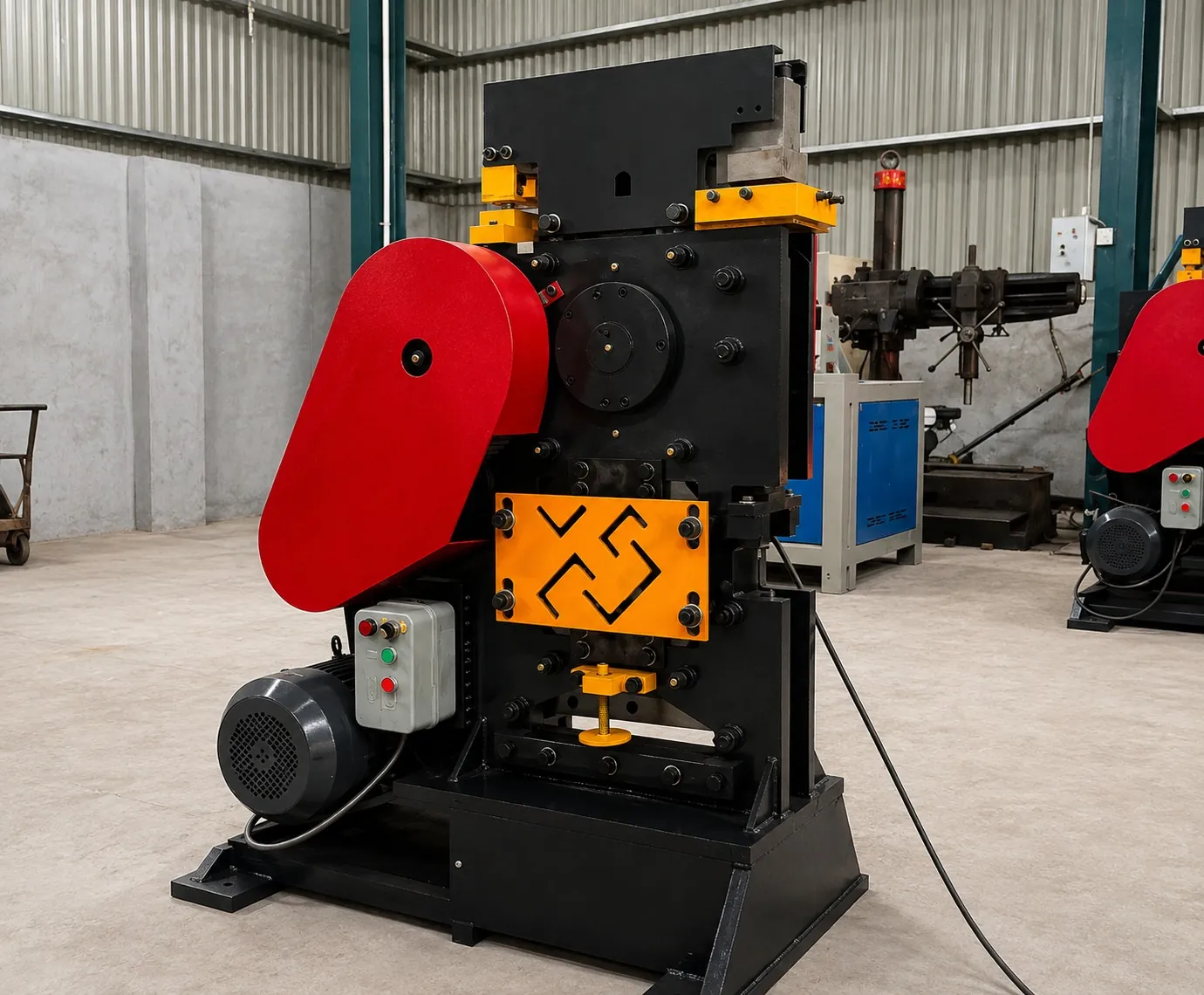

Iron cutter machine, QA32-14B
A dedicated heavy cutter rather than a multi-station ironworker. 120 tonne of shear strength through a 5.5 kW motor, taking flat up to 310 × 14 mm, angle to 140 × 140 × 14 mm and channel to GB180. Where the QA34 range is built for variety, this one is built for section size.
QA32-14B iron cutter
120 tonne shear · 35 mm punching| Model | QA32-14B |
|---|---|
| Shear strength | 1200 kN / 120 T |
| Flat cutting | 310 × 14 mm |
| Max cut angle steel | 140 × 140 × 14 mm |
| Max cut channel steel | GB180 |
| Max punching | 35 mm |
| Cutting frequency | 30 / min |
| Motor power | 5.5 kW / 7.5 HP |
| Input voltage | 415 V |
| Overall size | 1250 × 830 × 1680 mm |
| Weight | 1,200 kg |
Die option 1
- Channel 100 × 50 × 5 mm
- Channel 75 × 40 × 5 mm
- Angle 100 × 100 × 8 mm
- Round bar Ø 22 mm
- Square bar 22 × 22 mm
Die option 2
- Channel 125 × 60 × 6 mm
- Channel 100 × 50 × 5 mm
- Channel 75 × 40 × 5 mm
- Angle 50 × 50 × 6 mm
Hydraulic
Hydraulic iron cutting machines, 60 tonne
Built in Batala rather than imported, and specified the way the trade here actually asks for it. The 60 tonne machine cuts 3 and 4 inch channel, 4 inch angle, 40 mm round and 14 inch flat, and punches round and D holes on the same frame. Double action models drive two stations at once from separate cylinders, so cutting and punching run together.
Hydraulic iron cutting machine, 60 tonne
Single action · double action · pedestal punch| Specification | Single action | Double side punching | Pedestal punch |
|---|---|---|---|
| Capacity | 60 T | 60 T | 30 T |
| Body type | H frame | H frame | Pedestal |
| Working stations | One at a time | Cutting one side, punching the other | Punching only |
| Cutting capacity | |||
| Channel | 3″ and 4″ | 75 × 38 and 100 × 50 mm | — |
| Angle | 4″ (100 × 100 mm) | 100 × 100 mm | — |
| Round bar | 40 mm | 45 mm | — |
| Flat cutting | 14″ (350 mm) | 350 × 20 mm | — |
| Punching | |||
| Round holes | Yes | Yes | Yes |
| D and obround holes | Yes | Yes | Yes |
| Max plate thickness | 20 mm | 20 mm | 16 mm |
| Additional die station | — | Second die fitted on the side for punching, bending, notching or shearing | — |
| Hydraulics | |||
| Cylinder size | 220 mm bore | 130 mm, four bolt | Approx. 125 mm bore |
| Pump | Hydraulic gear pump, 220 bar | Two plunger | Two-stage hydraulic gear pump |
| Stroke length | 350 mm | 75 mm | 100 mm |
| General | |||
| Motor | 2.2 kW | 5.5 kW | 3 kW |
| Weight | 950 kg | 1,200 kg | Approx. 600 kg |
Hydraulic or mechanical?
Hydraulic gives full force anywhere in the stroke and starts the cut gently, which suits thick channel and angle. Mechanical is faster and cheaper for lighter repeat work.
Double side punching
Cutting dies on one side of the H frame, punching dies on the other, with a further die station on the side for bending, notching or shearing. One operator works a mixed batch without changing setup.
Pedestal punch, ghoda type
A dedicated single-station punch for hole work alone. Cheaper than a full cutter and simpler for a shop that mainly punches, in round and D shapes.
What it does
Five stations, one machine
Punching
Round, square, oval and slotted holes through plate, flat bar and angle. Dies change quickly, so one machine covers a shop's whole hole range.
Flat bar and plate shearing
Straight cuts in flat bar and plate with an adjustable hold-down, so the cut stays square and the edge stays clean.
Angle cutting
Angle iron cut square or mitred, with a diamond blade that keeps material loss and distortion low.
Round and square bar cutting
Multiple hole sizes in the bar shear so one station covers the common rebar and bar sections.
Notching
Rectangular notches in plate and angle for joints and corners, with gauging stops for repeat work.
Tooling
Dies available
- Angle 75 mm
- Angle 100 mm
- Angle 140 mm
- Round 25 mm
- Round 30 mm
- Round 50 mm
- Square 20 × 20 mm
- Channel 100 × 50 mm
- Channel 125 × 65 mm
- Punch dies to your hole size
Who buys them
Workshops we supply
- Fabrication shops
- Structural steel units
- Grill and gate makers
- Construction contractors
- Shipyard and repair units
- Agricultural implement makers
- Railway workshops
Five machines in one
Punch, shear, angle cut, bar cut and notch from a single frame and one motor. Less floor space, one power connection.
Delivered across India
We arrange transport from Batala to your site, so you are not chasing a transporter yourself.
One year warranty
Covered against technical fault for a full year from delivery, on every machine we supply.
Dies to your size
Standard set supplied. Punch and die sets made to your hole sizes and sections on request.
Freight and site visits are charged at actual. Installation is not included in the machine price and can be arranged on request.
