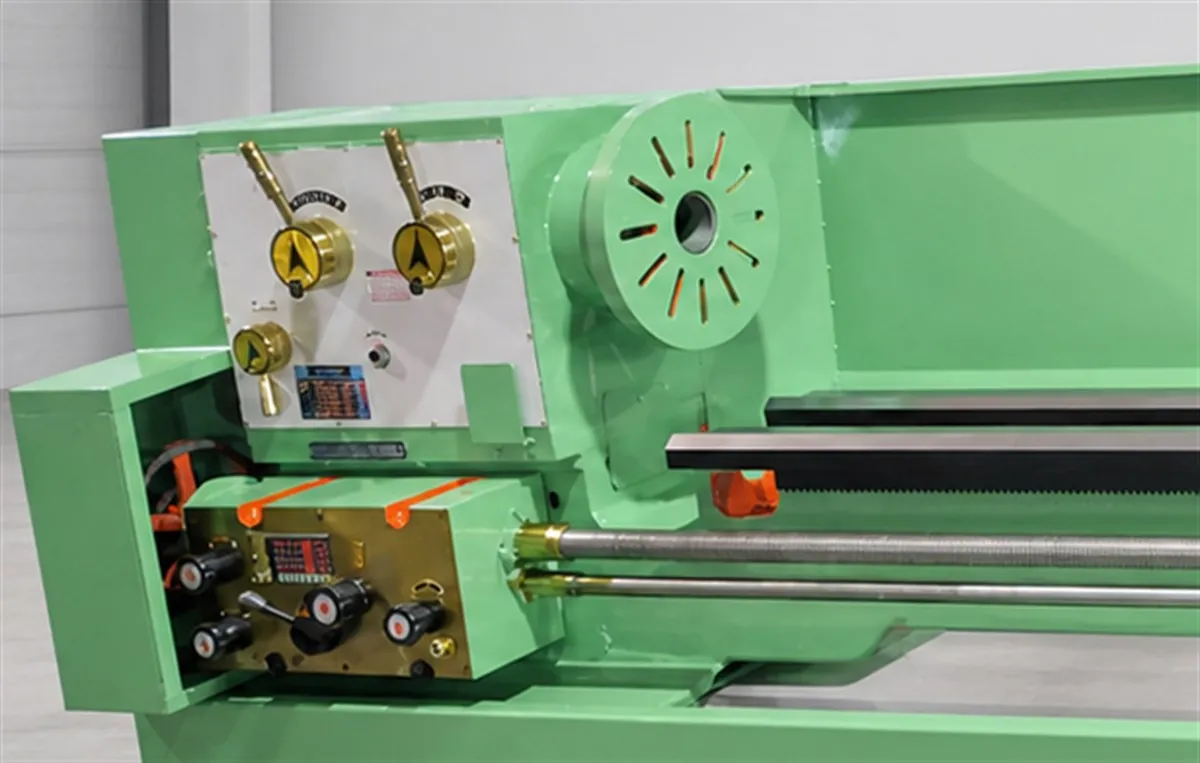

Geared headstock
All Geared Lathe Machine
All geared lathe machines, 5.5 to 18 feet
Nine spindle speeds selected by lever, induction hardened and ground bed ways, alloy steel spindles. For shops where speed changes are frequent and the cut has to hold torque under load. Three centre heights across eight bed lengths.
The machine

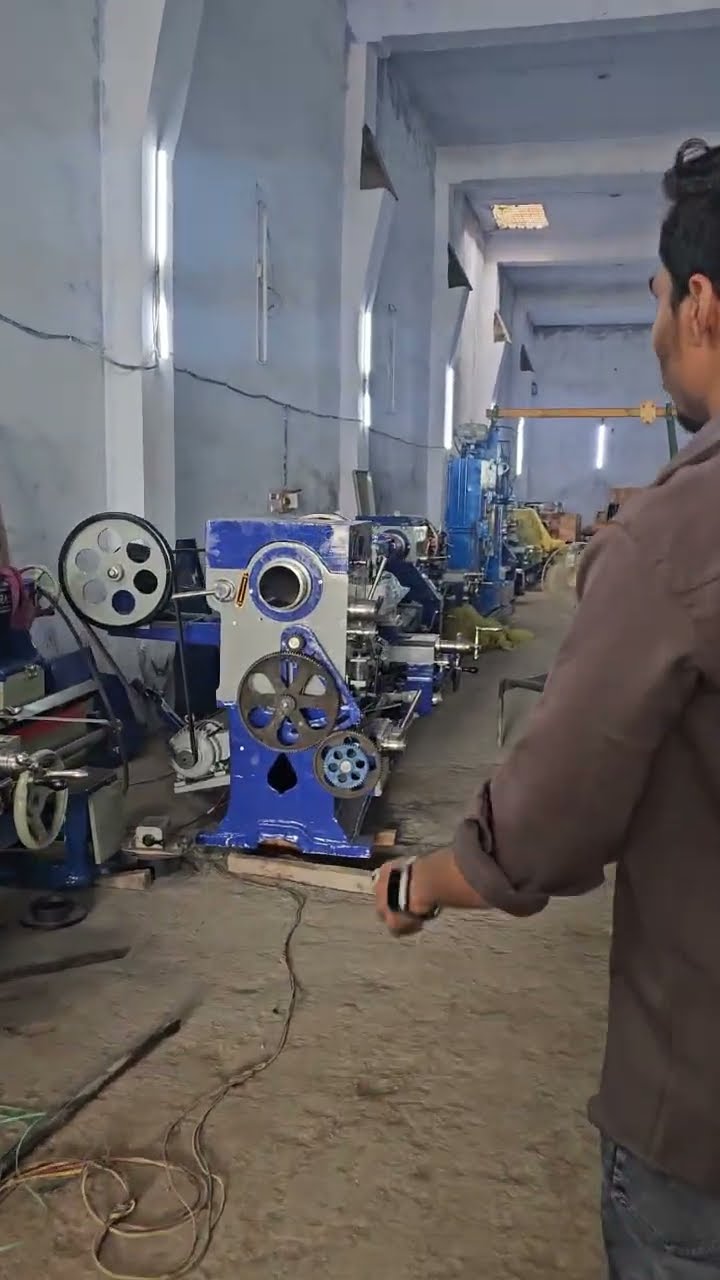

Machine photographs
More views
Close-ups of the headstock, gearbox, tooling and controls are available on request, with a short video of the machine running.
Ask for more photosPAG series
Specifications
Three centre heights — 254, 304 and 375 mm — each available across eight bed lengths from 5.5 to 18 feet.
PAG series
PAG-10 · PAG-12 · PAG-15| Specification | PAG-10 | PAG-12 | PAG-15 |
|---|---|---|---|
| Height of centre | 254 mm | 304 mm | 375 mm |
| Width of bed | 325 mm | 325 / 375 mm | 375 mm |
| Length of gap | 160 mm | 160 mm | 160 mm |
| Gap in front of face plate | 200 mm | 200 mm | 200 mm |
| Capacity | |||
| Swing over bed | 490 mm | 590 mm | 750 mm |
| Swing over cross slide | 290 mm | 390 mm | 500 mm |
| Swing in gap | 800 mm | 900 mm | 1060 mm |
| Movement of cross slide | 254 mm | 304 mm | 375 mm |
| Movement of compound slide | 130 mm | 130 mm | 200 mm |
Full specification
| Main spindle | |
| Type of spindle | Threaded or A2-8 |
|---|---|
| Spindle bore | 54 / 80 / 104 mm |
| Spindle morse taper | MT-6 |
| Spindle adapter taper | MT-4 |
| Number of spindle speeds | 9 |
| Spindle speed range | 30 to 1060 RPM |
| Threads and feeds | |
| Number of inch threads | 44 |
| Range of inch threads | 2 to 60 TPI |
| Number of metric threads | 24 |
| Range of metric threads | 0.5 to 15 mm pitch |
| Lead screw | 38 mm, 4 TPI & 2 TPI |
| Longitudinal feed range | 0.066 to 2 mm / rev |
| Transverse feed range | 0.0165 to 0.50 mm / rev |
| Tailstock | |
| Quill diameter | 57 mm |
| Quill travel | 170 mm |
| Morse taper | MT-4 |
| Motor | |
| Main motor | 3 HP / 2.2 kW or 5 HP / 3.7 kW |
Bed lengths
Any PAG model| Bed length | Overall | Admit between centres |
|---|---|---|
| 5.5 ft | 1675 mm | 550 mm |
| 7 ft | 2130 mm | 1000 mm |
| 9 ft | 2740 mm | 1560 mm |
| 10 ft | 3048 mm | 1860 mm |
| 12 ft | 3658 mm | 2500 mm |
| 14 ft | 4268 mm | 3050 mm |
| 16 ft | 4875 mm | 3650 mm |
| 18 ft | 5485 mm | 4250 mm |
Build
Bed cast in graded iron, 2V and 2 flat type, with induction hardened and ground ways. Headstock spindle in alloy steel, precision ground, all rotating parts balanced. Headstock gears above 45 HRC. Four-walled closed oil-bath apron and Norton box. Hexagonal tailstock body with internally and externally ground spindle, offset for taper turning.
Optional accessories
- Face plate
- Carrier plate
- Steady rest
- Follow rest
- True chuck
- Dog chuck
- Rear splash guard
- Quick change tool post
- Motorised apron
- Power brake
- Taper turning attachment
- Coolant pump with tank
- Rear tool post
- Machine lamp
Oil country and heavy jobs
Where the cut needs high torque and a cone pulley belt would slip, the geared head holds the drive.
Steel and paper mills
Roll turning and precision die work where the operator changes RPM constantly through the job.
Tool rooms
Submersible motor shops, repair workshops, textile, automobile and small component units up to about one metre job length.
Delivered across India
We arrange transport from Batala to your site, so you are not chasing a transporter yourself.
Seen before it ships
You are welcome at Batala to see your machine running before dispatch. Every machine leaves with a written inspection and dispatch certificate.
One year warranty
Covered against technical fault for a full year from delivery, on every machine we supply.
Support that answers
Most questions are settled the same day over a video call with someone who knows the machine. Where a visit is needed, our engineer attends.
Freight and site visits are charged at actual. Installation is not included in the machine price and can be arranged on request.
Tell us the size. We’ll send the price today.
Message the bed length, swing and bore you need — or just describe the job. You’ll get specifications and a price the same working day.
Specifications are subject to change without notice as machines are continuously improved. Dimensions shown are nominal. Please confirm the final specification on your order acknowledgement.
