Pipe Threading Machine

Pipe threading machines, 50 and 65 mm

Indian built semi-automatic threading machines with self-opening die heads, for GI and MS pipe, scaffolding tube, bar and rod. Two capacities covering plumbing, fabrication and scaffolding work.

Request a Quote WhatsApp Us

50 & 65 mmThreading capacity

BSPTThread standard

Self-openingDie head

Made inPunjab

The machine

Machine photographs

More views

Close-ups of the working end, controls and tooling are available on request, with a short video of the machine running.

Ask for more photos

The machine

Machine photographs

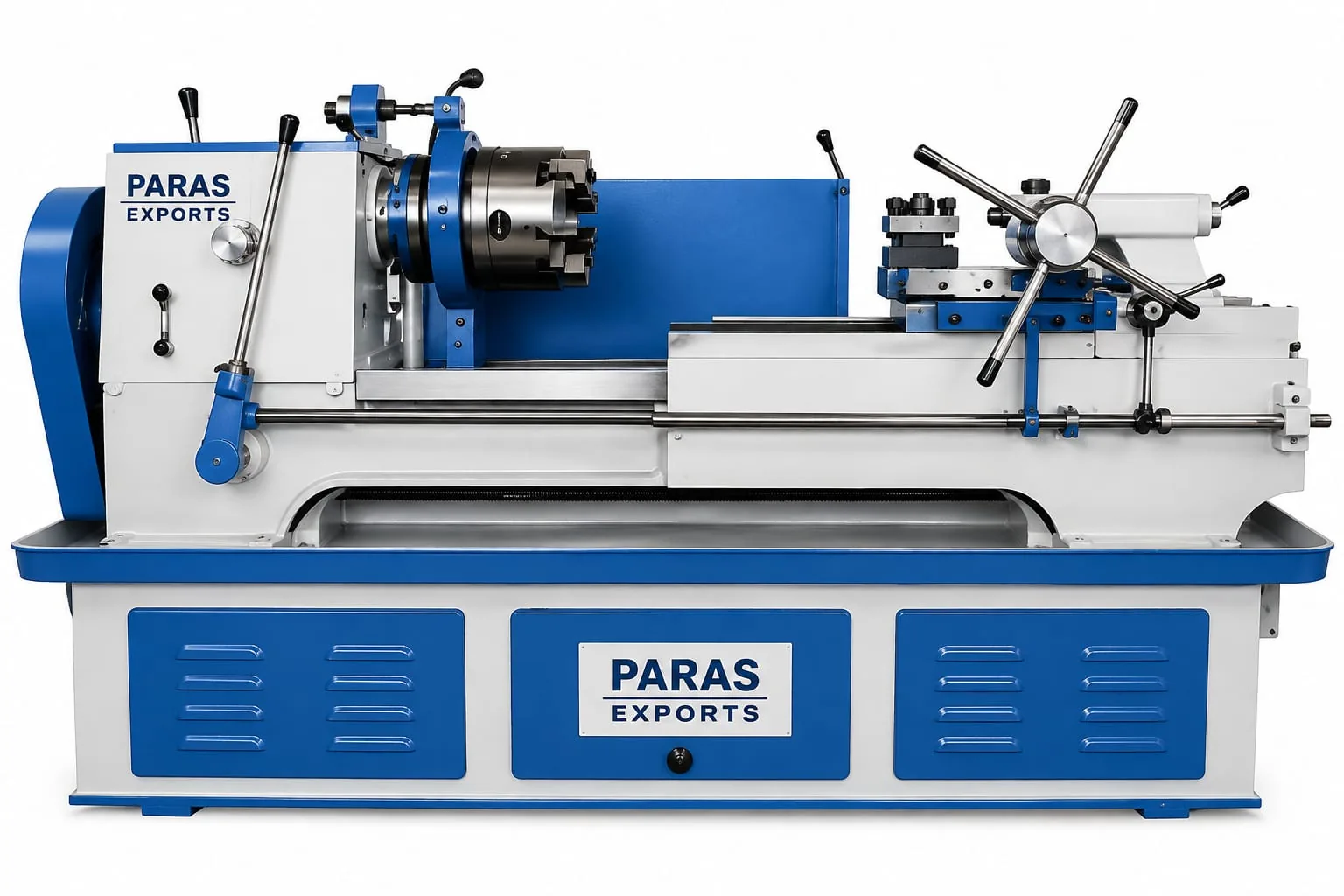

Machine manufactured by Paras Exports, Batala

More views

Close-ups of the headstock, tooling and controls are available on request, along with a short video of the machine running.

Ask for more photos

The range

Two capacities

Pick by the largest pipe you thread. Both machines are semi-automatic with self-opening die heads.

Pipe threading machine

50 mm · 65 mm · Indian built

Model	50 mm	65 mm
Threading capacity	up to 50 mm (2″)	up to 65 mm (2.5″)
Thread type	BSPT / BSP	BSPT / BSP
Motor	1 HP	3 HP
Voltage	440 V	440 V
Automation	Semi-automatic	Semi-automatic
Die head	Self-opening	Self-opening
Machine weight	40 kg	81 kg

Supplied with: die head with chasers for the machine capacity, chuck, coolant system and pipe support. Additional chaser sets available.

Where they work

Who buys them

Seen before it ships

You are welcome at Batala to see your machine running before dispatch, with a written inspection and dispatch certificate.

Delivered across India

We arrange transport from Batala to your site, so you are not chasing a transporter yourself.

One year warranty

Covered against technical fault for a full year from delivery, on every machine we supply.

Support that answers

Most questions are settled the same day over a video call with someone who knows the machine.

Freight and site visits are charged at actual. Installation is not included in the machine price and can be arranged on request.

Before you enquire

Pipe threading questions

What can it thread?

GI and MS pipe, scaffolding tube, bar and rod. The 50 mm machine covers up to two inch and the 65 mm up to two and a half, which between them handle almost all plumbing, scaffolding and structural pipe work.

Why a machine instead of hand dies?

Speed and consistency. A hand die on two inch GI pipe is heavy work and the thread comes out however the operator managed it. The machine cuts the same thread every time, which matters when the joint has to seal.

What is a self-opening die head?

It opens automatically at the end of the thread instead of needing the machine reversed off the work. It saves a few seconds on every piece, which on a scaffolding order of several hundred lengths is most of a shift.

50 mm or 65 mm?

Take the 65 mm if you thread scaffolding tube or larger structural pipe. The 50 mm suits plumbing and general fabrication. You cannot thread larger than the machine, so buy for the biggest pipe you expect, not the average.

Indian or imported machine?

These are the Punjab built machines — the Linco pattern that plumbing and scaffolding shops here have run for decades. Imported machines follow a different design and different die head standards, so chasers and spares are not interchangeable. The advantage of the Indian machine is that a fitter in any town can service it and chasers are available locally.

What supply does it need?

440 V three phase. The 65 mm machine runs a 3 HP motor.
