Grinding Machine

OPS UDYOG Machine A grinding machine, often shortened to grinder, is a machine tool used for grinding, which is a type of machining using an abrasive wheel as the cutting tool. Each grain of abrasive on the wheel's surface cuts a small chip from the workpiece via shear deformation.

Grinding is used to finish workpieces which must show high surface quality (e.g., low surface roughness) and high accuracy of shape and dimension. As the accuracy in dimensions in grinding is on the order in most applications it tends to be a finishing operation and removes comparatively little metal, about 0.25 to 0.50mm depth. However, there are some roughing applications in which grinding removals high volumes of metal quite rapidly. Thus grinding is a diverse field.

The grinding machine consists of a power driven grinding wheel spinning at the required speed (which is determined by the wheel’s diameter and manufacturer’s rating, usually by a formula) and a bed with a fixture to guide and hold the work-piece. The grinding head can be controlled to travel across a fixed work piece or the workpiece can be moved whilst the grind head stays in a fixed position. Very fine control of the grinding head or tables position is possible using a vernier calibrated hand wheel, or using the features of numerical controls.

Grinding machines remove material from the workpiece by abrasion, which can generate substantial amounts of heat; they therefore incorporate a coolant to cool the workpiece so that it does not overheat and go outside its tolerance. The coolant also benefits the machinist as the heat generated may cause burns in some cases. In very high-precision grinding machines (most cylindrical and surface grinders) the final grinding stages are usually set up so that they remove about 200 nm (less than 1/100000 in) per pass - this generates so little heat that even with no coolant, the temperature rise is negligible.

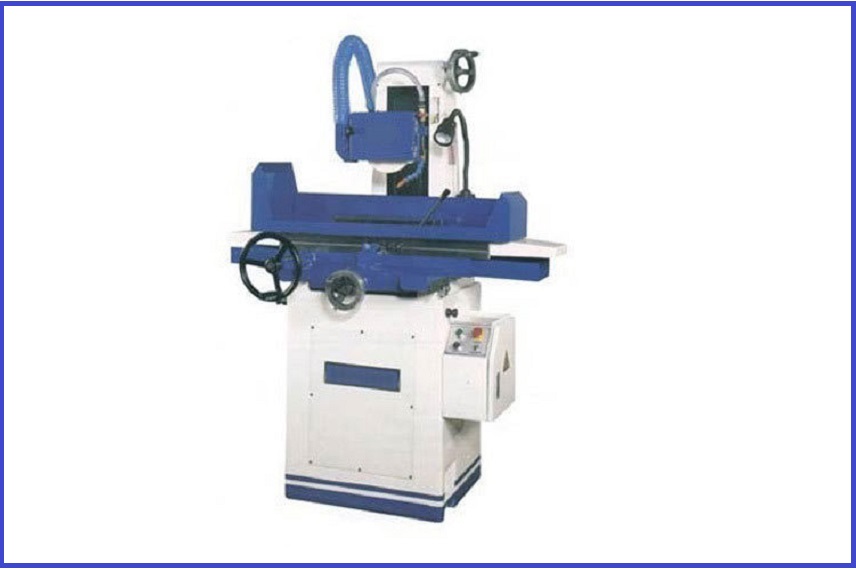

Grinding Machine Manufacturers and Suppliers from India. We are the provide quality members of Grinding Machine, Grinding Machine Producers, Grinder Machine Suppliers, Grinding Machine Manufacturers and Exporters from India. Grinding Machines are mainly used for Industrial purpose. Provide cheapest with wide range of Grinding Machine from India. Find Surface Grinding Machine and Cylindrical Grinding Machine from India.
