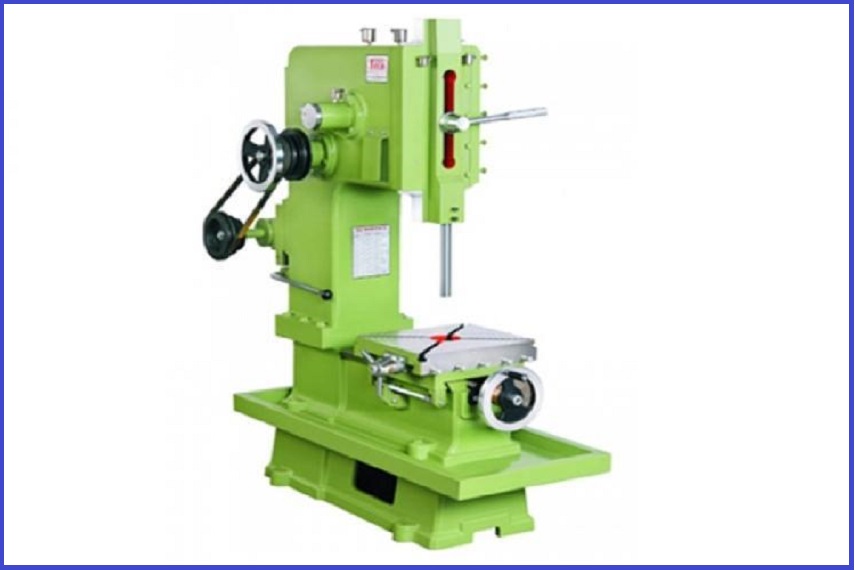

Havy Duty Slotting Machine

Slotting Machine Manufacturers and Suppliers from India. Find High Quality and Reasonable price offers of Slotting Machines. Find various types of Slotting Machines like Heavy Duty Slotting Machine, CNC Slotting Machine, Slot Machine, Industrial Slotting Machine and Precision Slotting Machine from India. Find high quality with wide range offers of Slotting Machine

Column the column consists ol two parts which are adequately ribbed & securely held together to form a rigid unit. The deep throat enables a wide variety ot parts to be machined.

Drive the electric motor drives the clutch pulley and the gears titled in the column from there the power is transmitted to the ram by the means ot itnk mechanism the ram-movement is started by engaging clutch. The link mechanism allows tor an accelerated ram movement in return stroke ram speed changes are effected by sliding gears controlled by shaft through gear box.

Ram: The ram is well ribbed and is quite strudy. An taper wedge is provided for smooth running. The ram can be tilted 5 degree on demand and swiveled 10 degree in case ot 400 mm stroke.

Table:The table is circular and is provided with t-slots it is divided on its circumference into 360 degrees. A tapered whole is provided in the centre of the table for reception of tho centering mendral while machining circular slotting work. Direct indexing is provided for accurately locating the table in various positions.

Feed : the feed mechanism mounted on the column through side gear box. The feeds are infinitely within the range of 0. 2 mm to 1 5 mm in case of 450 mm 9lroke 0. 2 mm to 2 mm per cycle. The feeds can be adjusted when machine is al the rest

Outstanding features : High grade casting for wear resistance and rigidity. single lever control for changing the speeds.centralised machine controls on operating side. steel gears sliding on multi spiined shafts drum clutch lor stopping ram at any position all shafts are carried on ball bearings. hand operated automatic pump for lubrication. indirect indexing by dividing attachment. variable automatic table feeds m all directions is optional.

Extra equipments : True chuck. Vee belts. Lubrication pump. Special index plate. Bellows, longitudinal & cross auto feed. Rotary table auto feed. Tilting head±5 . Swivel head 10° for 400 mm stroke(cooper type).

Technical Specification

Model 1 2 3 4
Working Stroke 126 152 252 in..
Length of Ram 202 554 680 /10
Vertical Adj. Of Ram 88 152 202 vor.
Centre of Cutting tools To col. 164 252 378 4(0
Working Surface of Table 202 278 352 6
